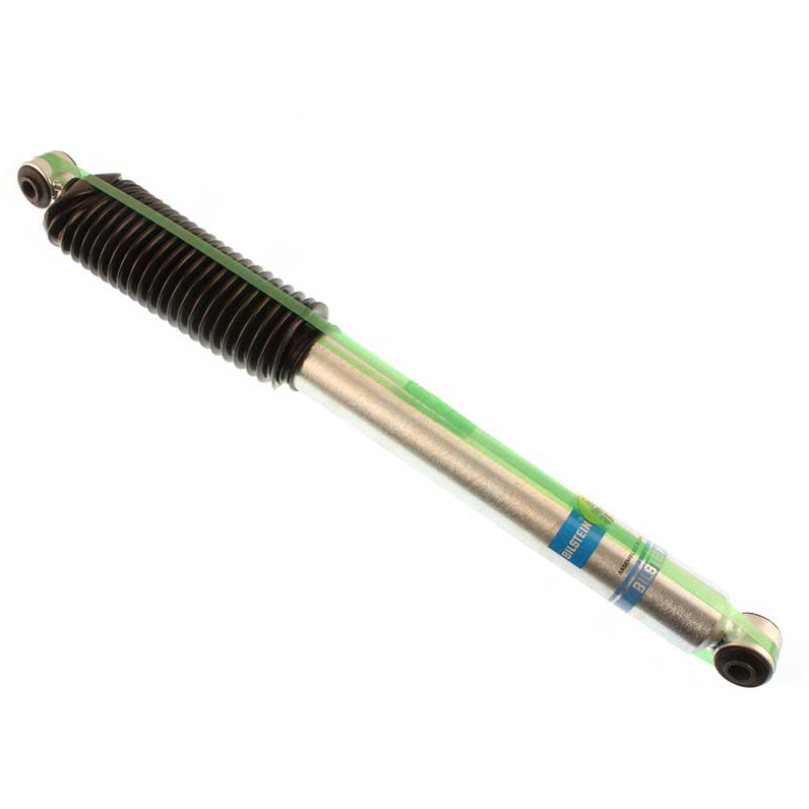

BILSTEIN 5100 SERIES SHOCK ABSORBER 24-218030 (REAR) LIFTED 3"-4"
BILSTEIN 5100 SERIES SHOCK ABSORBER 24-218030 (REAR) LIFTED 3"-4"
VEHICLE FITMENT:
2011-2023 GM 2500/3500HD 4WD (REAR) LIFTED 3"-4"
DESCRIPTION
The Bilstein 5100 Series Shock Absorber 24-196468 are designed specifically to help your 2011-2023 GM 2500HD/3500HD Pickup reach its pinnacle in ride performance, while supplying the correct length shock for your specific lift. A 5100 Series equipped vehicle offers a much more controlled ride compared to the competitors lifted vehicle shocks, allowing you to maintain a similar feeling of comfort and control you have with a stock vehicle. Since Bilstein has already spent the time doing the fitment and tuning for your specific vehicle, utilizing the 5100 Series Shock Absorbers takes the guess work out of buying shocks for a lifted vehicle. These 5100 Series Shock Absorbers are the best way to guarantee you will always get the correct product for your lifted vehicle.
SPECIFICATIONS:
Setting: 5100 Series
Position: Rear
Descriptor: Rear Lifted Height: 3-4"
Quantity Needed Per Vehicle: 2
Finish: Zinc plated
Reservoir: No
Body Design: 46mm ID smooth body (Non-coilover)
MEASUREMENTS:
Collapsed Length (IN): 18.17
Extended Length (IN): 29.92
Collapsed Length (MM): 461.5
Extended Length (MM): 29.92
Applications:
2011-2023 Chevrolet Silverado 2500HD/3500HD
2011-2023 GMC Sierra 2500HD/3500HD
*Note:
Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. An eye to eye shock is measured from the center of one eyelet to the center of the other eyelet. Shock Absorbers sold individually.
