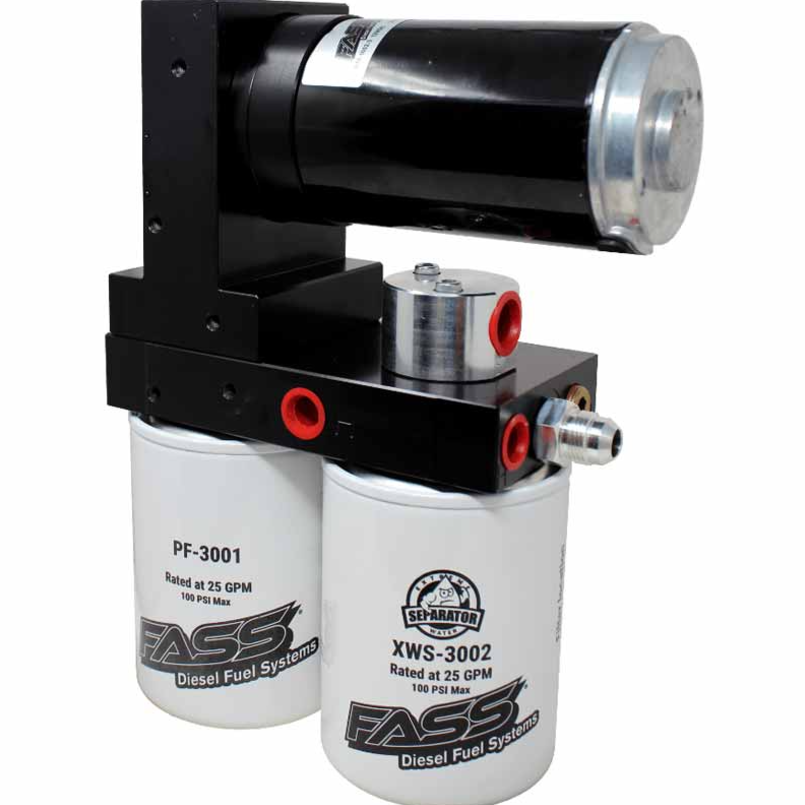

FASS TSC15250F220G TITANIUM SIGNATURE SERIES220GPH FUEL SYSTEM

VEHICLE FITMENT FOR:
2020-2023 GM SILVERADO/SIERRA 2500HD/3500HD 6.6L DIESEL L5P (MODERATE TO EXTREME - REQUIRES TUNING)

DESCRIPTION
The FASS TSC15250F220G Titanium Signature Series 220GPH Fuel System is the fuel system upgrade your 2020-2023 GM Silverado/Sierra 2500HD/3500HD 6.6LDiesel L5P (Moderate To Extreme - Requires Tuning) needs. The Titanium Signature Series diesel fuel system was engineered by FASS Fuel Systems to be the top performing, longest lasting and most reliable aftermarket filtration system in the diesel industry. Rated at 220 gallons per hour, the Titanium Signature Series System is capable of supporting your diesel engine with enough fuel for multiple fueling system upgrades. A Titanium Signature Series System also offers advanced filtration benefits that will help protect your fuel injection Systems, effectively extending the life of your injection system and injectors. Benefits include an improved filtration rating of 2 Microns, a built in water separation filter and FASS Fuel Systems patented air/vapor removal process. Some diesel engines are known for having injector failure issues; this can be caused by several different factors and FASS Filtration Systems is designed to eliminate those that are fuel related.

FASS Whisper Technology (FWT)
was engineered to meet the stringent demands of today's quiet diesel engines. FASS Whisper Technology was in development and testing for over two and a half years to meet FASS Fuel System's high quality and durability standards. FASS Whisper Technology effectively and drastically reduces the sound levels of the Titanium Signature Series FASS Diesel Fuel System to a whisper while at the same time increasing fuel flow rates.

Performance Radius Cuts (PRC)
are an advanced machining technique used to improve the flow of fuel through the FASS System by creating smooth flowing cuts within the aluminum housing. This prevents the reintroduction of air and vapor back into the fuel and to prevent eddy currents from forming within the corner of a 90-degreesharp angle. FASS Titanium Signature Fuel Systems are the only Fuel Air Separation System that incorporates these exclusive Performance Radius Cuts, lesser competitors commonly use T-Bone and square 90-degree fittings that can limit fuel flow, cause restrictions and reintroduce air back into your fuel.

Mass Flow Return (MFR)
technology is used to continually polish your fuel by keeping a positive pressure on the fuel being delivered to the engine to prevent cavitation along with galling and scoring. Then returning the fuel, that's not yet needed, back to the tank after it has been passed through the filtration process, removing dirt, air, vapor and water. This means your fuel is being constantly Polished (cleaned), guaranteeing that your diesel truck always has the cleanest fuel possible. The MFR in combination with the optional FASS Fuel Heater options will help ensure cold weather operations!

Bolt On Bracket Mounts
old mounting styles required drilling or welding when mounting your new System. Mounting your Titanium Signature Series System takes only minute sand all brackets are made from machined steel for superior support and strength.

FEATURES:
Bolt On Bracket Installation
Preset 70-75 PSI Fuel Pressure
Complete Replacement System
220 Gallons Per Hour Flow Rating
Removes Water, Air and Debris From Diesel Fuel
2 Micron Filtration Rating
Protects and Extends The Life Of Your Injectors
Improved Cold Weather Starts
1/2 Inch Fuel Lines and Ports
Fuel Mileage Improvement
Improved Fuel Volume Delivery
Smoother Engine Idle
Optional Electric Heater Ports
Optional Fuel Pressure Gauge Port
1,000,000 Mile Motor
30,000 Mile Filter Life Expectancy
