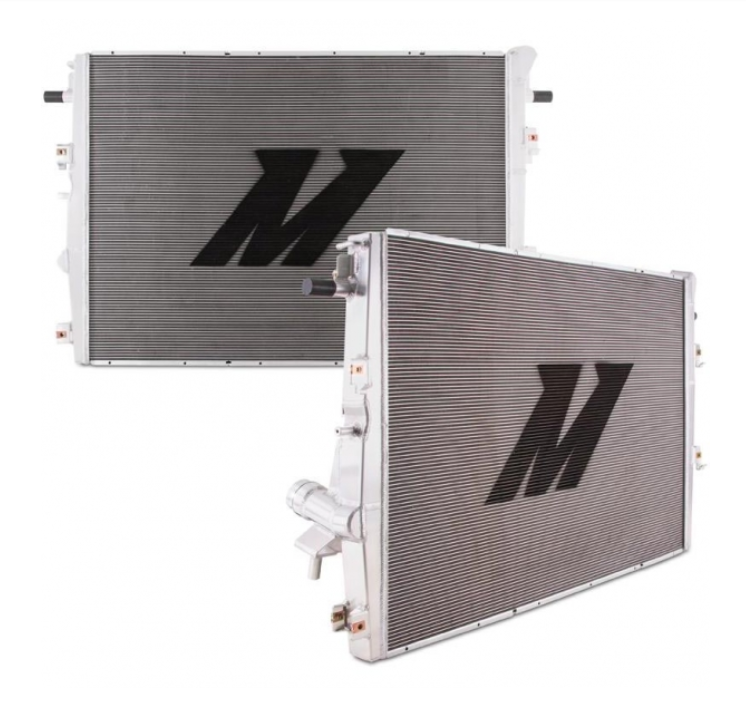

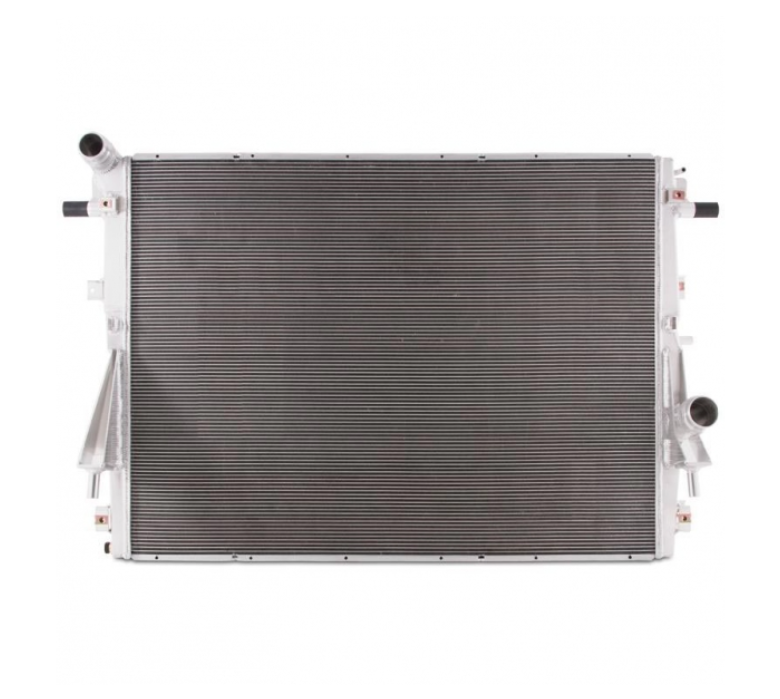

MISHIMOTO MMRAD-F2D-17 ALUMINUM PRIMARY RADIATOR

VEHICLE FITMENT:
2017-2019 FORD 6.7L POWERSTROKE

DESCRIPTION
Replace the failing or damaged factory radiator in your 2017-2019 Ford 6.7L Powerstroke with a heavy-duty Mishimoto MMRAD-F2D-17 Aluminum Primary Radiator. Taking their experience with previous Powerstroke cooling products, Mishimoto combines this knowledge to create a larger, stronger, and more capable primary radiator compared to the factory unit.

This aluminum direct replacement radiator offers a 14% increase in core volume, 68% increase in surface area, and 62% increase in coolant capacity, making it capable of cooling even the most demanding trucks! Rubberized upper mounting pegs are carried over from the previous 6.7L and 6.4L Powerstroke designs which help absorb frame flex and direct it away from the radiators core. The extruded tubes with internal struts distribute stress which increases durability and pressure tolerance. Covered by Mishimoto's Lifetime Warranty.

FEATURES:
Direct Replacement
68% Greater Surface Area
14% Increased Core Volume
Rubber Upper Mounting Pegs
62% Increased Coolant Capacity

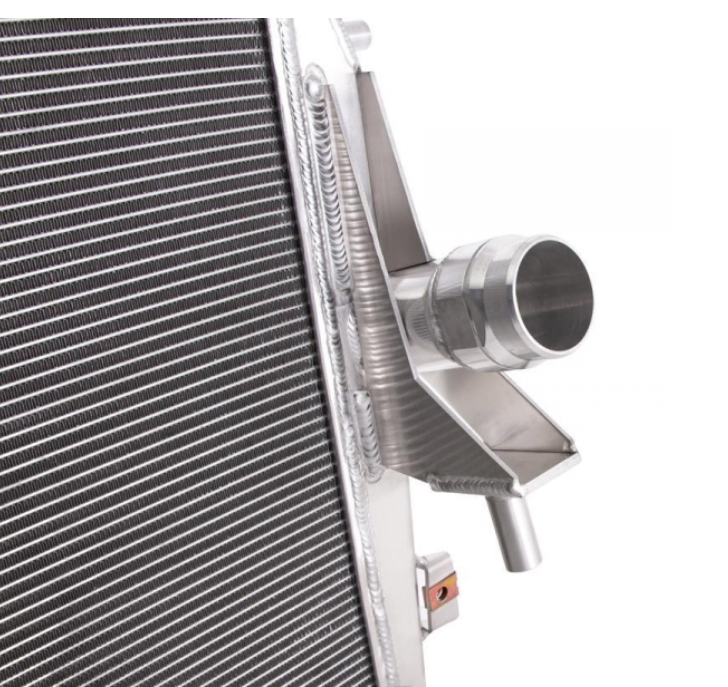

CNC-Machines Quick Disconnect Inlet & Outlet
Lifetime Warranty

Specifications
Core Length: 38.38"
Core Height: 27.25"
Core Thickness: 1.88"
Inlet/Outlet: Factory Style Quick-Disconnect
Number of Rows: 2
Coolant Capacity: 9.5 Gallons
